NPS服务部署

声明:部署仅用于测试企业FRP加密流量的阻断情况,程序仅运行,不进行安装。

下载执行程序及配置文件

访问网盘 https://pan.yangzihome.space ,搜索NPS,下载服务端

下载操作系统对应的服务端程序,配置如下(nps.conf)

appname = nps

runmode = dev

http_proxy_ip=0.0.0.0

http_proxy_port=80

https_proxy_port=443

https_just_proxy=true

https_default_cert_file=conf/server.pem

https_default_key_file=conf/server.key

bridge_type=tcp

#服务端口

bridge_port=8024

bridge_ip=0.0.0.0

# Public password, which clients can use to connect to the server

# After the connection, the server will be able to open relevant ports and parse related domain names according to its own configuration file.

public_vkey=123

#Traffic data persistence interval(minute)

#Ignorance means no persistence

#flow_store_interval=1

# log level LevelEmergency->0 LevelAlert->1 LevelCritical->2 LevelError->3 LevelWarning->4 LevelNotice->5 LevelInformational->6 LevelDebug->7

log_level=7

#web服务

web_host=a.o.com

#账号admin

web_username=admin

#密码123(请修改)

web_password=123

#后台端口

web_port = 8080

web_ip=0.0.0.0

web_base_url=

web_open_ssl=false

web_cert_file=conf/server.pem

web_key_file=conf/server.key

# if web under proxy use sub path. like http://host/nps need this.

#web_base_url=/nps

#Web API unauthenticated IP address(the len of auth_crypt_key must be 16)

#Remove comments if needed

#auth_key=test

auth_crypt_key =1234567812345678

#allow_ports=9001-9009,10001,11000-12000

#Web management multi-user login

allow_user_login=false

allow_user_register=false

allow_user_change_username=false

#extension

allow_flow_limit=false

allow_rate_limit=false

allow_tunnel_num_limit=false

allow_local_proxy=false

allow_connection_num_limit=false

allow_multi_ip=false

system_info_display=false

#cache

http_cache=false

http_cache_length=100

#get origin ip

http_add_origin_header=false

#pprof debug options

#pprof_ip=0.0.0.0

#pprof_port=9999

#client disconnect timeout

disconnect_timeout=60

Linux 部署

执行命令程序(程序无需安装)

sudo chmod 755 nps
./nps
[I] [nps.go:202]  the version of server is 0.26.10 ,allow client core version to be 0.26.0
[I] [connection.go:36]  server start, the bridge type is tcp, the bridge port is 8024
[I] [server.go:200]  tunnel task  start mode:httpHostServer port 0
[I] [connection.go:71]  web management start, access port is 8080
[I] [connection.go:62]  start https listener, port is 443
[I] [connection.go:53]  start http listener, port is 80

访问后台http://ip:8080,账号:admin,默认密码:123

Windows 部署

CMD执行命令运行(请勿关闭CMD)

./nps

Docker部署(推荐)

上传config配置文件(修改下方命令中的conf目录为实际目录)

docker run -d --name nps --net=host -v <本机conf目录>:/conf ffdfgdfg/nps

配置客户端

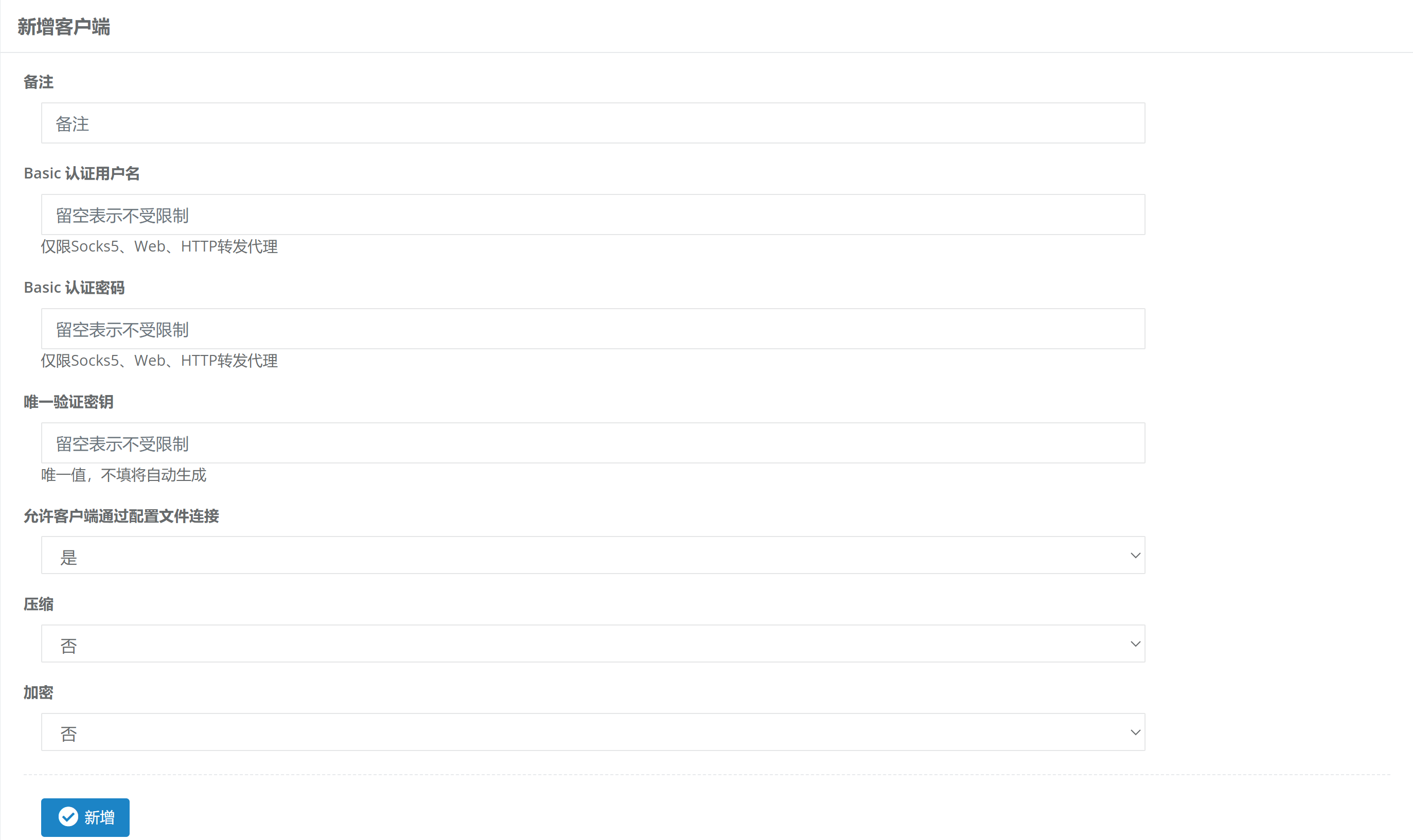

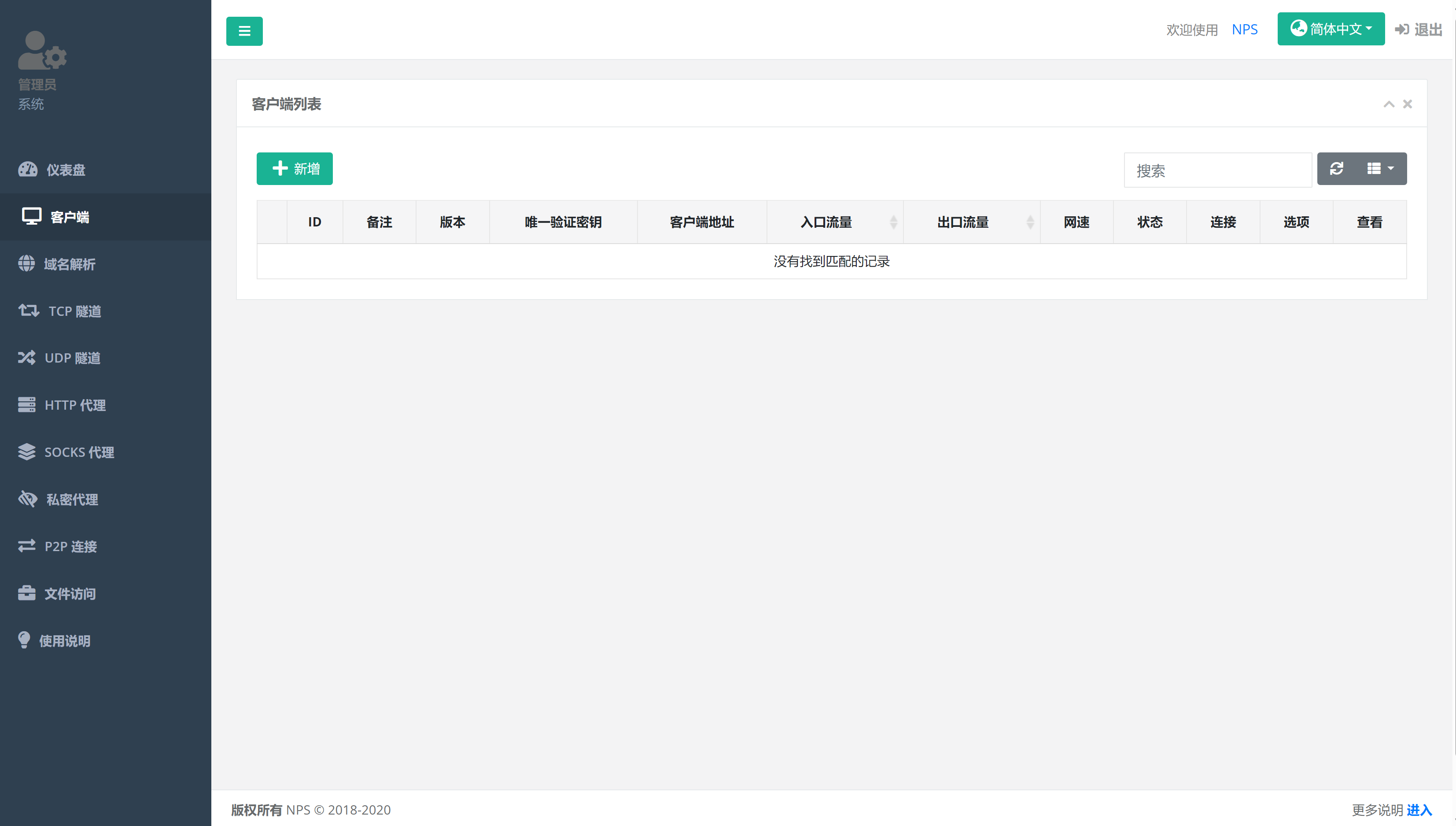

1、登录后台,新增客户端

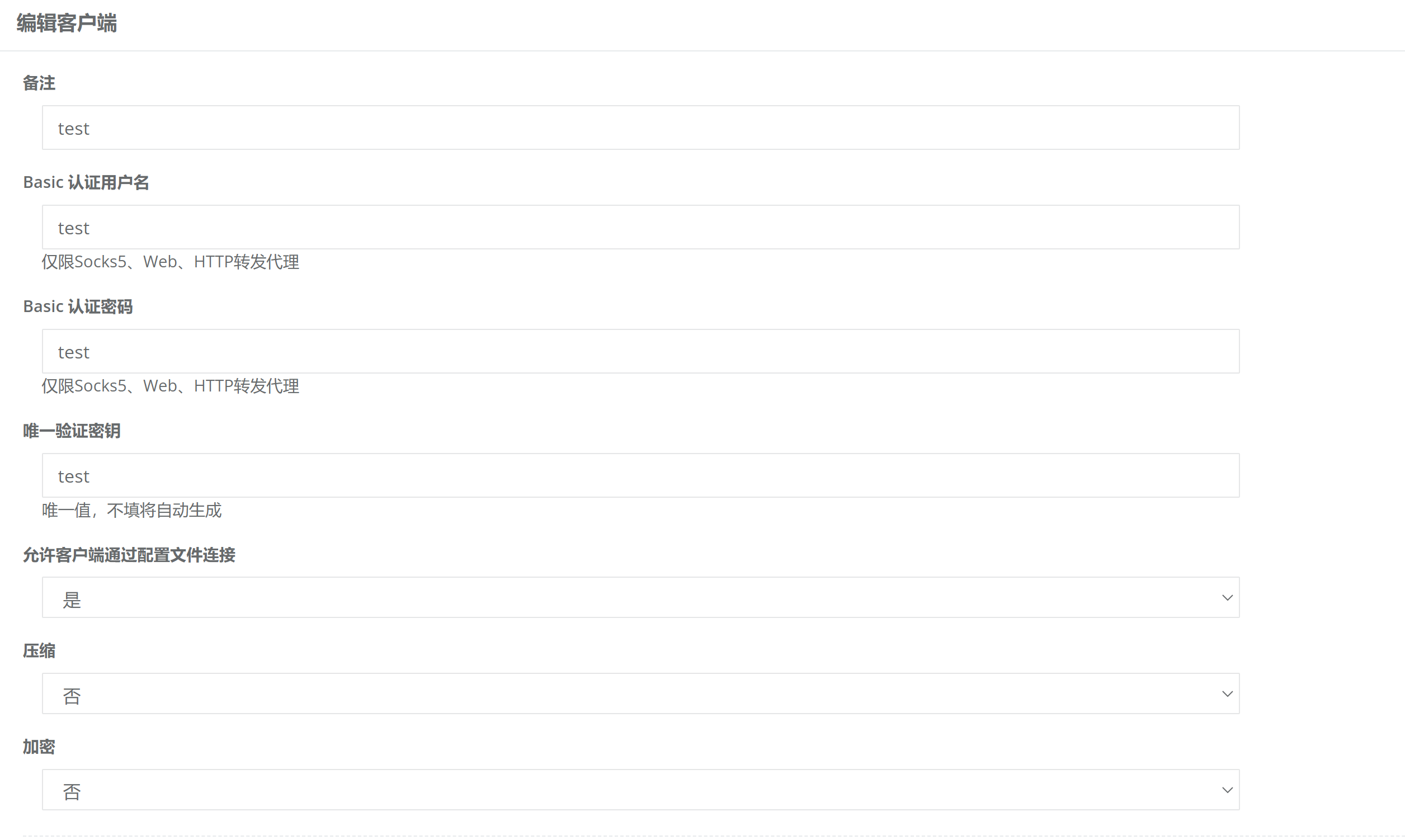

2、填写客户端配置信息



问题

1、程序可能触发杀毒软件,请将程序性加入白名单

2、程序执行过程中可能出现服务器80、443端口占用情况,推荐使用docker部署
